Oil Filter Control Panel features

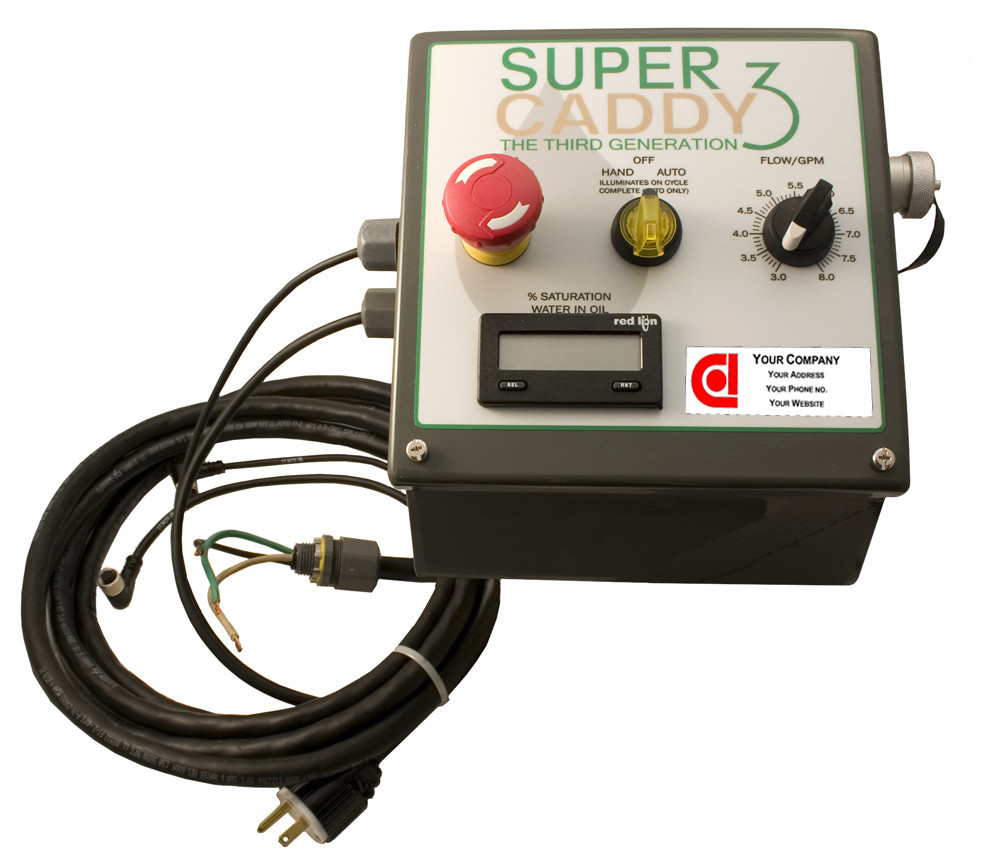

This Oil Filter control panel example is an upgraded version of our customer’s previous standard panel. It’s primary function is to allow an operator to control the flow of oil through a cart mounted filter, monitor a cart mounted instrument, and display the % saturation of water in the oil.

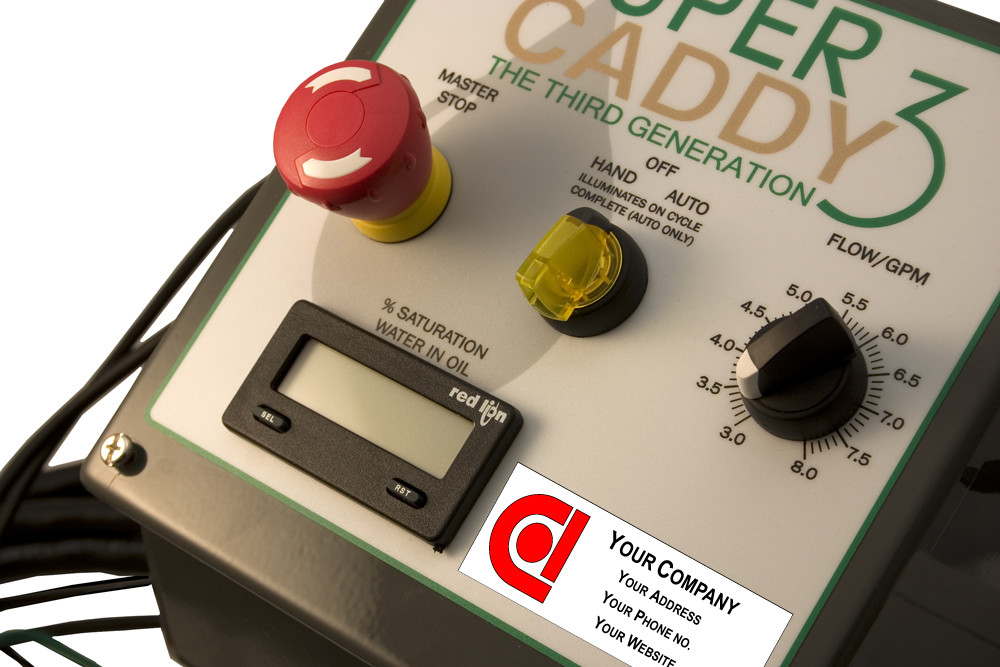

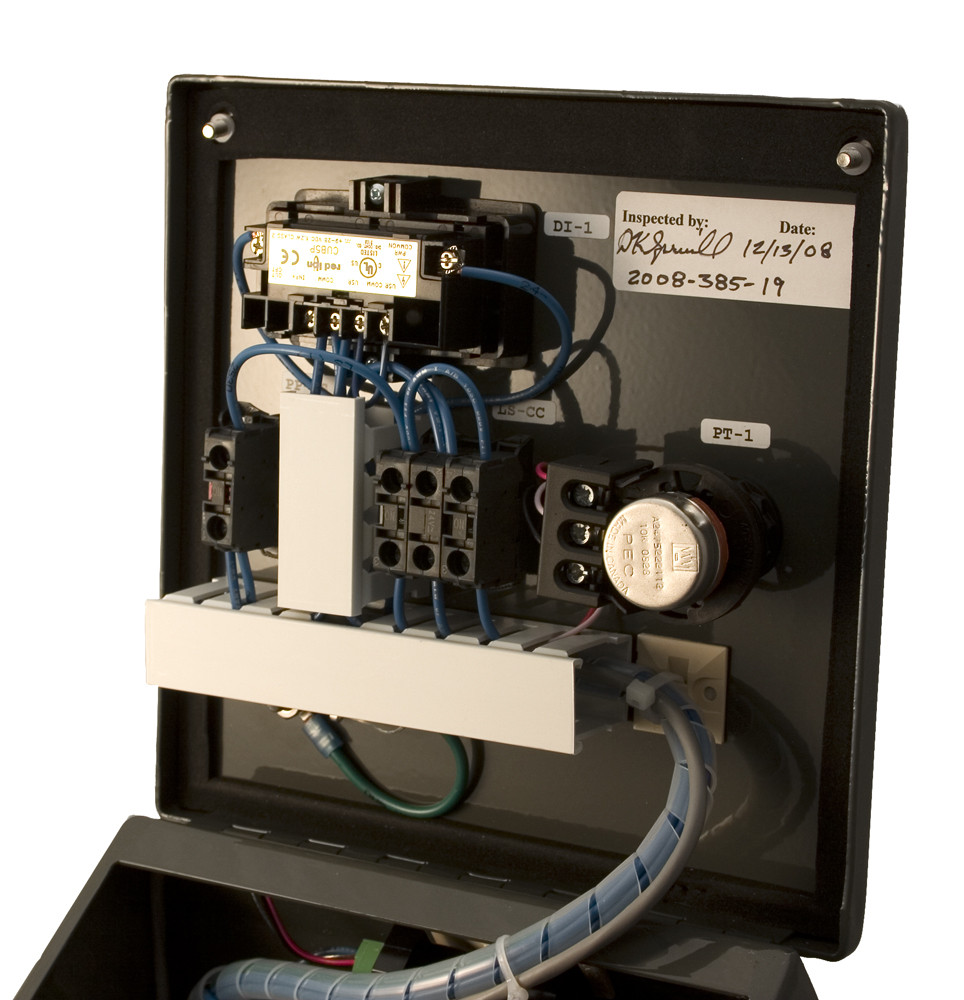

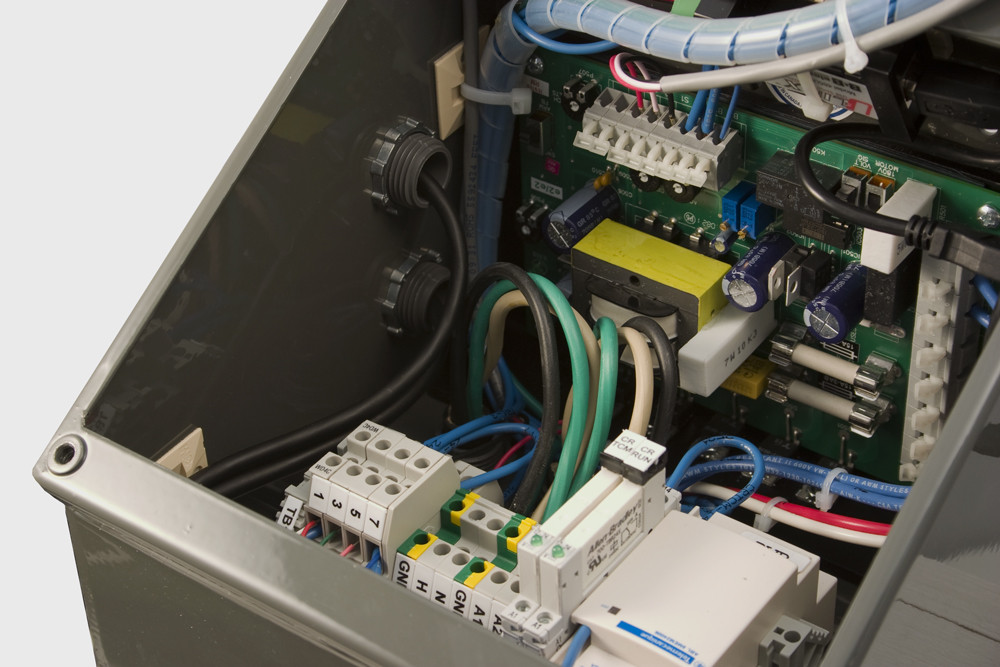

We redesigned this panel to improve cart appearance and simplify final assembly. We provide a small angled consolet to optimize the operator’s view, paint it to match the cart, and provide all mounting holes and cables. We also provide a USB interface port to simplify cart instrument datalogging.
Engineering Submittal Package
We produce an engineering submittal package for every control panel we’re planning to produce. We submit to our customer for review and approval prior to releasing it to production. This allows everyone to review what we’re planning to produce and confirm that it’s correct. Each includes the following sections.
- Section A. Datasheets for Enclosures and Accessories
- Section B. Datasheets for Power and Control Devices
- Section C. Datasheets for Field Mounted Devices
- Section D. Drawings
- Section E. Bill of Material
Click here to see our Oil Filter Control Panel Submittal
|Safety Certification Label||None Requested||Customer Safety Certifies Cart|
|Enclosure Type||Angled Consolet|
|Enclosure Rating||NEMA 12|
|Incoming Power Voltage||120V 1 Phase|
|Incoming Power Connection||Power Cord with 120V Plug|
|Incoming Power Disconnect||None||Provided by 120V Power Plug|
|Incoming Power Short Circuit Protection||None||Provided by Circuit Breaker protecting receptacle powering 120V Power Plug|
|Outgoing Power Loads||1 HP DC Motor||Motor Cable provided|
|Operator Controls||Emergency Stop Push-Pull
% Digital Display
|Field Connections||Contamination Sensor
|Sensor Cables provided|
|Communications||USB Port||Datalogging Plug|
